Temperature controlled shaker

Heating and shaking samples in microplates and PCR consumables are common laboratory processes in the fields of microbiology, biochemistry and cell culture, among others. With the new temperature controlled shaker, these work steps are now easily and efficiently carried out directly in the BRAND Liquid Handling Station pipetting robot, without removing the plates. This not only saves time, but also reduces the risk of sample contamination. As a result, the advantages of laboratory automation can be utilized for other applications, including sample incubation and intensive stirring of samples during reactions at room temperature or higher.

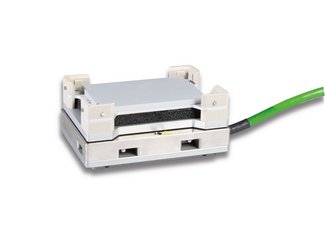

Teleshake 95 with fixed mounted basic plate for Liquid Handling Station

With the Teleshake 95 module, shaking and heating of samples in microplates and PCR consumables is possible directly inside the Liquid Handling Station pipetting robot from BRAND, without removing the plates from the robot. This saves time and reduces the risk of sample contamination. Applications include sample incubation and intensive stirring of samples during reaction at room temperature or higher.Thanks to its modular design, installation of the heater/shaker is easy. Simply place it on the worktable of the Liquid Handling Station and connect it via a USB port to a PC or notebook and the included

view product

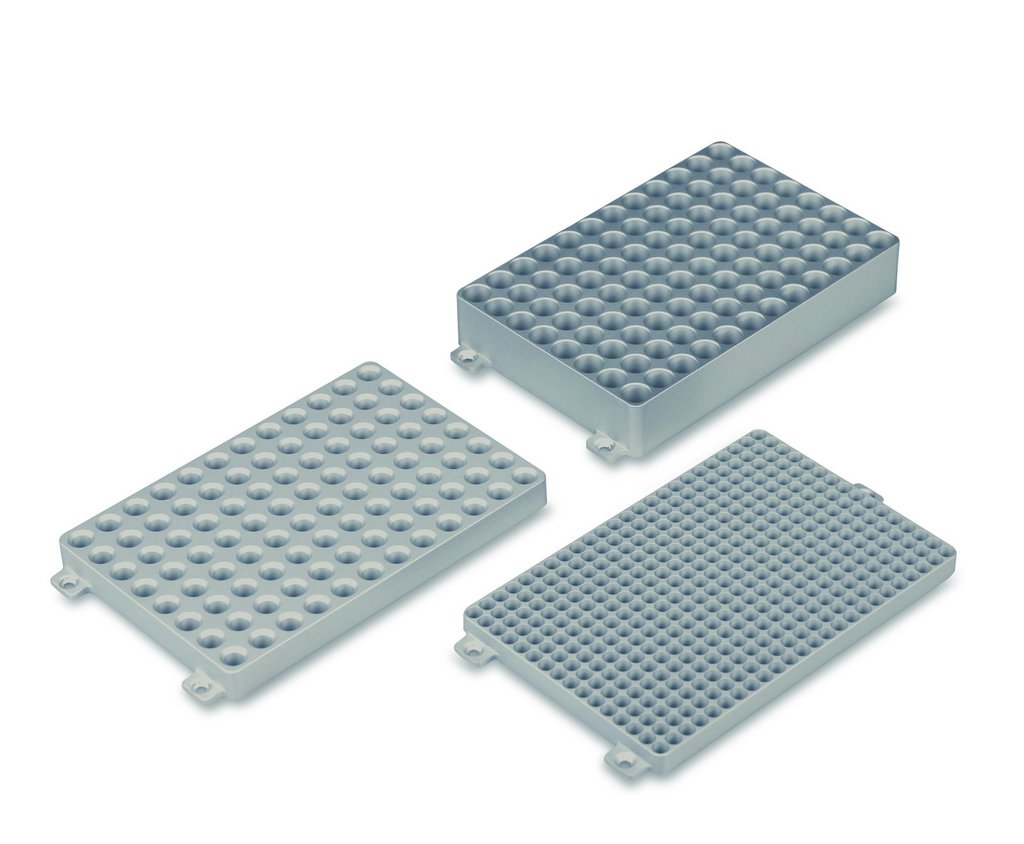

Due to its modular design, installation of the temperature controlled shaker is quick and easy. It is placed on the worktable of the Liquid Handling Station and connected to a PC or laptop and the included controller via a USB port. The data stored in the controller software simplifies detection and integration of the unit in new and existing methods. Custom-molded adapter plates ensure optimal heat transfer. These adapter plates are matched to the shape of plate bottoms, including microplates with a flat, U-shaped or V-shaped bottom.

96- and 384-well microplates and PCR plates can be shaken and heated. The shaker has a frequency range of 100 to 1900 rpm and can be operated at a maximum temperature of 90°C. To protect against overheating, the maximum operating temperature of each plate type (depending on the material) is individually stored in the software. Both functions can be used separately or together.

The temperature controlled shaker is available now at BRAND and can be upgraded with a software update, also for all Liquid Handling Station versions already in use.
